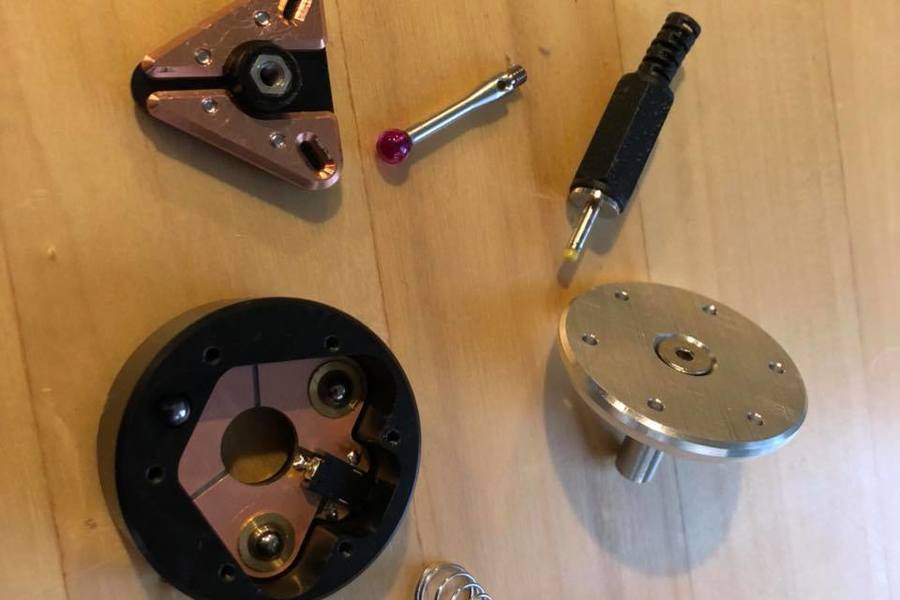

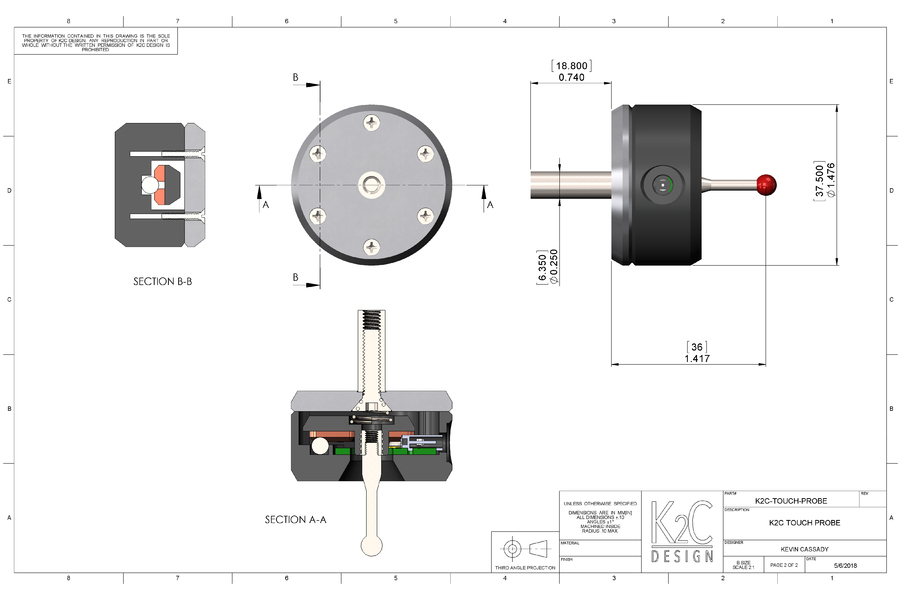

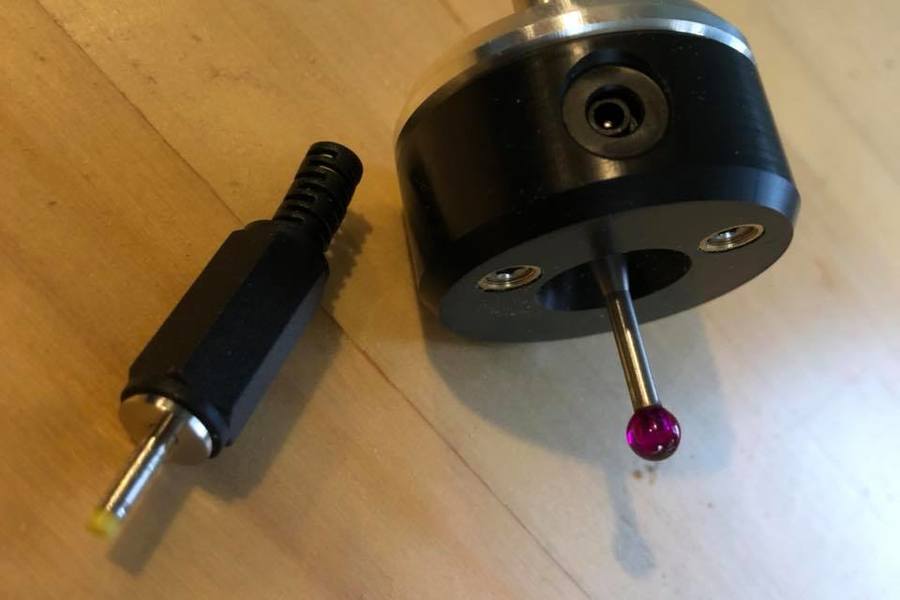

Edge probe for use on CNC routers. All parts should be either buildable on an SO3 or orderable from a catalog. Two fine pitch set screws are used to center the probe tip to the spindle.
| Type | Length | Width | Thickness | Job Zero |
|---|
| Name | Type | Tool | Feedrate | Plungerate | Cut Depth |
|---|
| Filename | File Type | File Size |
|---|

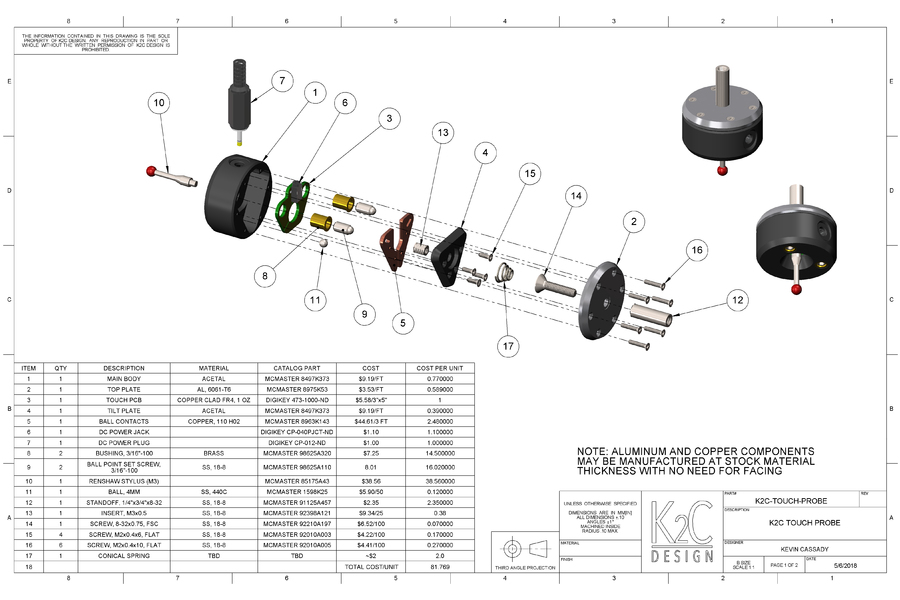

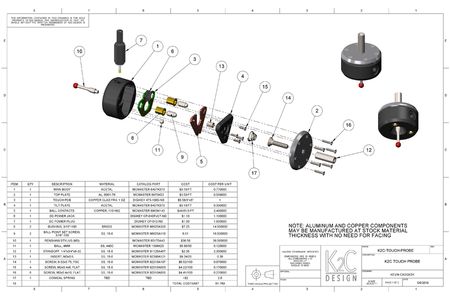

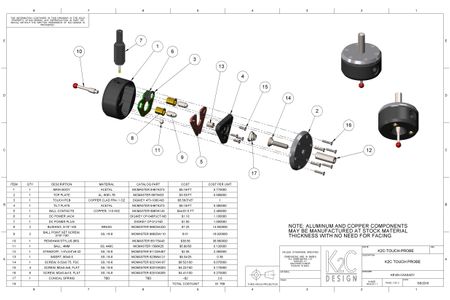

Fabricated parts should all be buildable on Shapeoko or Nomad. The metal parts are designed to use the raw stock thickness so no face milling is required.
The most expensive components are the Renshaw probe (M3 threaded insert) and 3/8"-100 adjustment screws. Either of those could be substituted with alternative parts to bring the build cost down.
Have you made this project?
If so, upload a photo to show the author some love and let everyone know what your finished version looks like!
You must be signed in to upload a photo.
made by {makerusername}
Comments
dkumpf posted 6 years ago
This looks awesome! Nice work on the design and drawings. Do you have any more info or a video of it in use?kgcassady posted 6 years ago
Not just yet. I have one torn apart to tweak before testing.dkumpf posted 6 years ago
Okay, I'd love to see any videos and/or performance results you find from your testing!opticrest posted 5 years ago
Any updates on this? Been looking for something like this for the Nomad for ages!kgcassady posted 5 years ago
Not yet. I got distracted by something shiny.opticrest posted 5 years ago
If you need any help feel free to message me!GRC2020 posted 3 years ago
Do you have any plans on selling the touch probes?You must be signed in to leave a comment.
