CNC Hold Down Clamps

Project By: jonlan

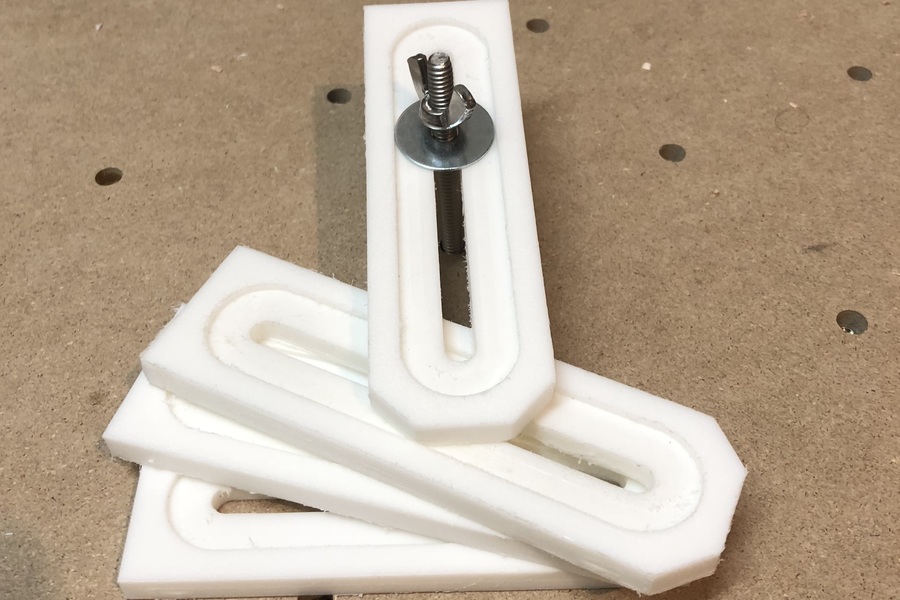

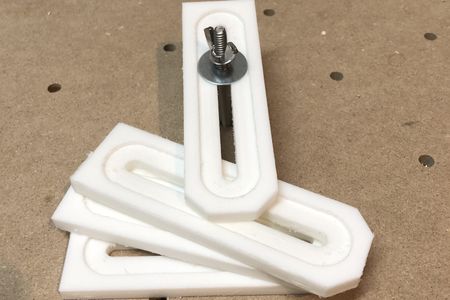

A pattern for 4 hold down clamps made to be used with a threaded insert table.

Files

Type Length Width Thickness Origin
Name Type Tool Feedrate Plungerate Cut Depth

The included YouTube clip walks you through how I designed these clamps in Carbide Create so if you're looking for something different you can pretty easily make changes.

{makes}
+2

These worked out perfect... I needed more clamps for a new water table I wanted to fixture. These were quick and easy, just needed to speed it up a bit as the settings were for a different material. No probs. Thanks for sharing!

+2

Works as advertised. I used IKEA cutting board... 8 clamps for $2.99 what a bargain. Thanks for the design and the video.

These worked out perfect for me I made them with .75” pine
