Rasberry Pi Mounting Plate

by Dmoye · April 25, 2018 electronics · 10247 views · 2983 downloads

Rasberry Pi Mounting Plate

Files

C2D design1.c2d C2D design3.c2d

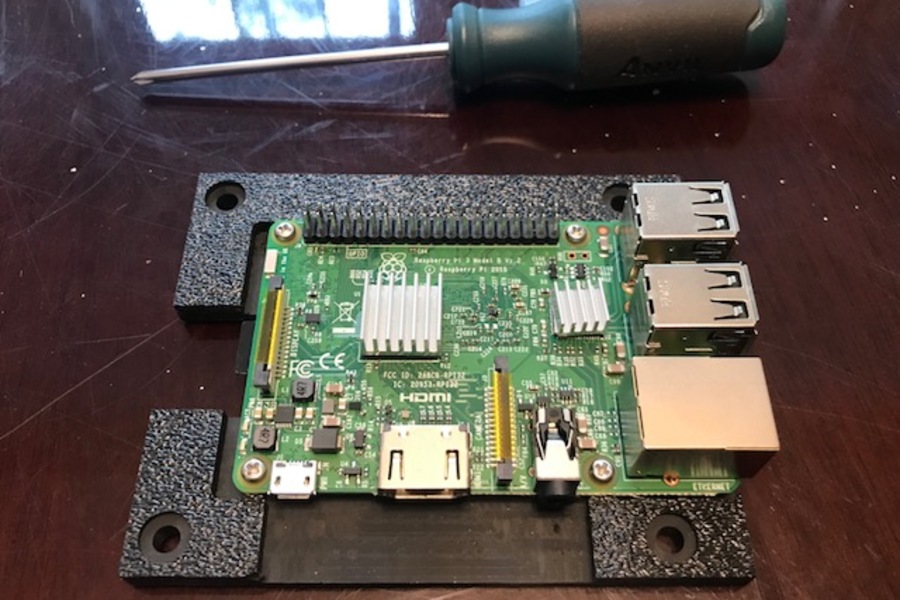

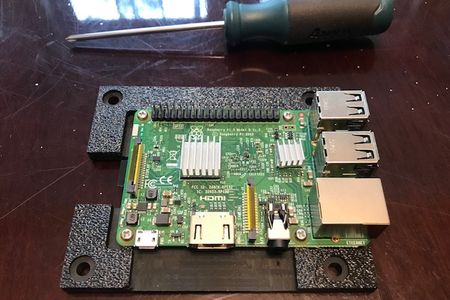

Mounting plate designed for mounting a Rasberry Pi. This was made for a Pi 3 B and 3B+ so please check compatibility for earlier versions.

Notes

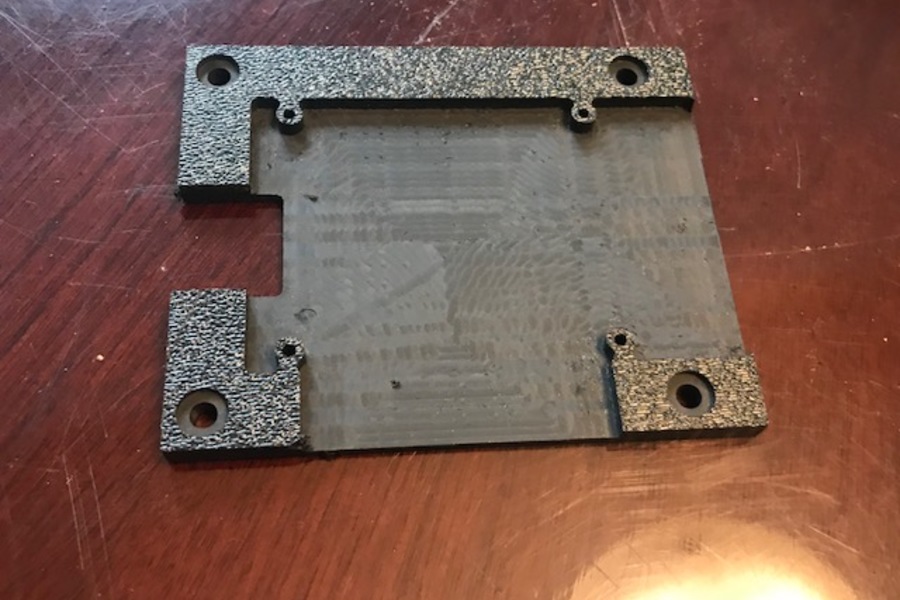

ABS plastic mounting plate for Rasberry Pi.

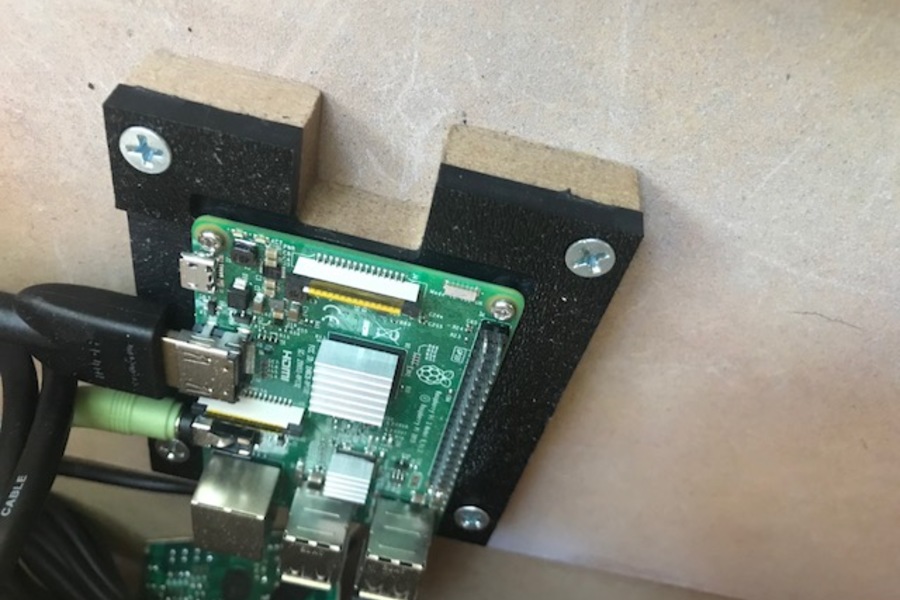

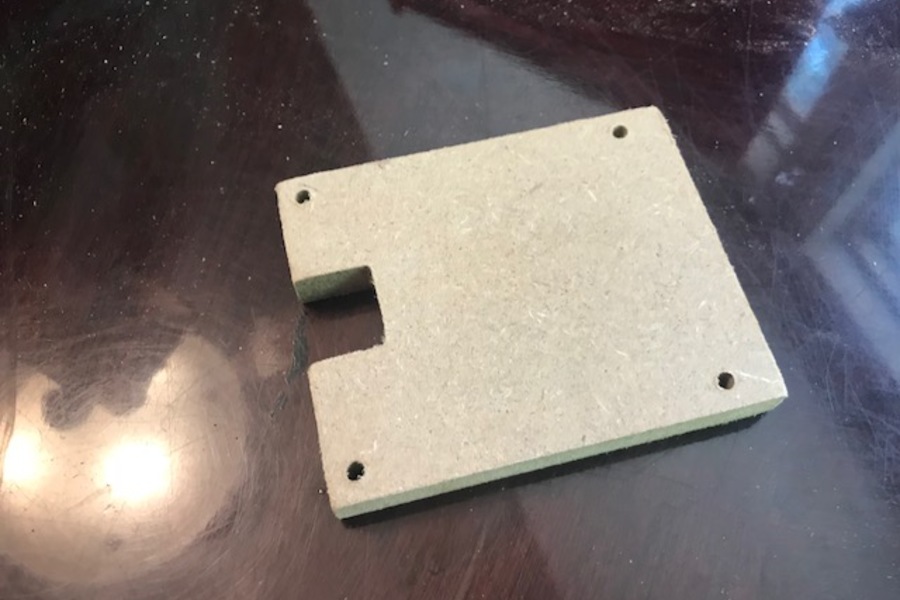

Added file for a riser plate cut from 1/2" MDF. This allows to get the sd card out easier if needed.
