Low Profile Clamp for Chinese Engineers Vice

Project By: Mr*Beaver


vice machineclamps

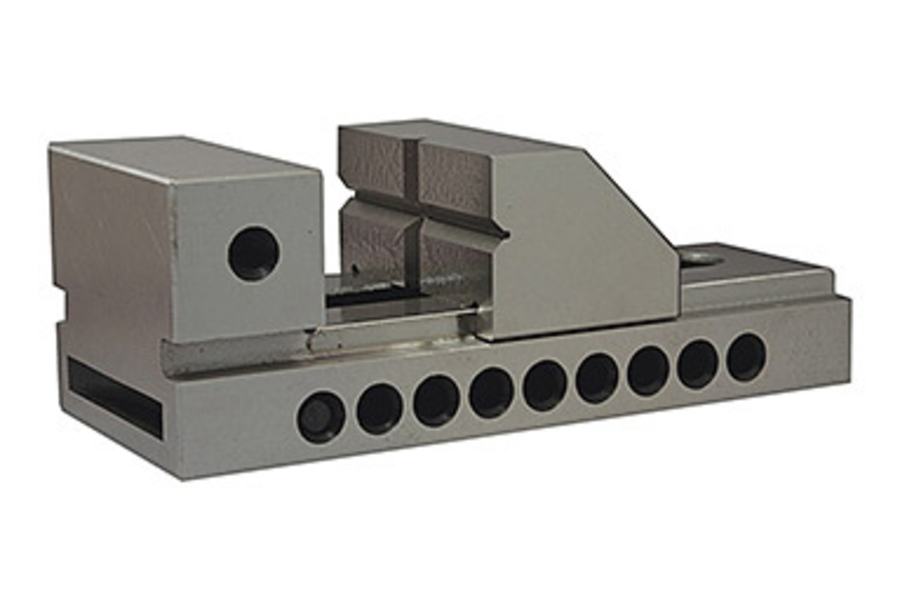

A low profile clamp designed for the Chinese Machinist Vices

Files

Type Length Width Thickness Origin
Name Type Tool Feedrate Plungerate Cut Depth

The author of this project has not posted a video.

Leave a comment and let them know you would like to see one!

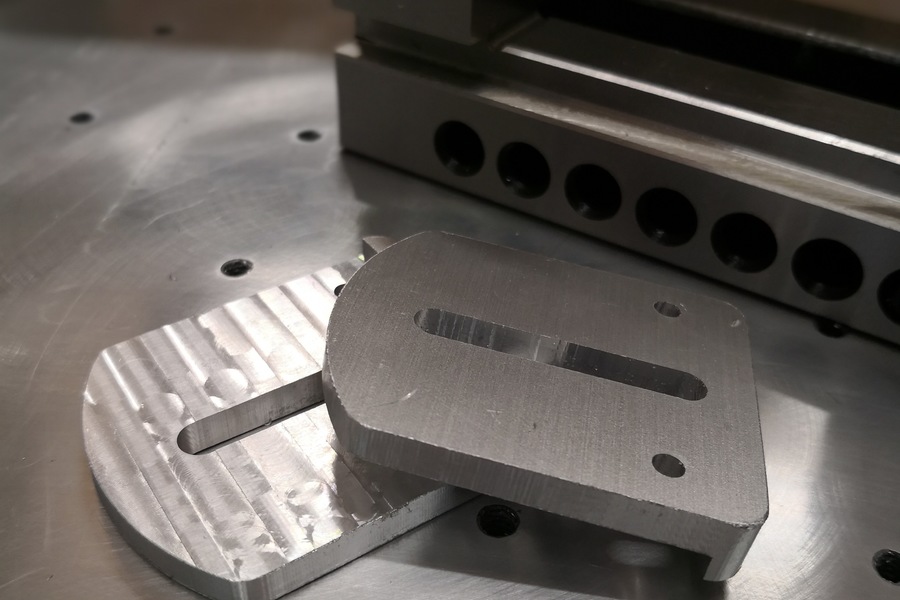

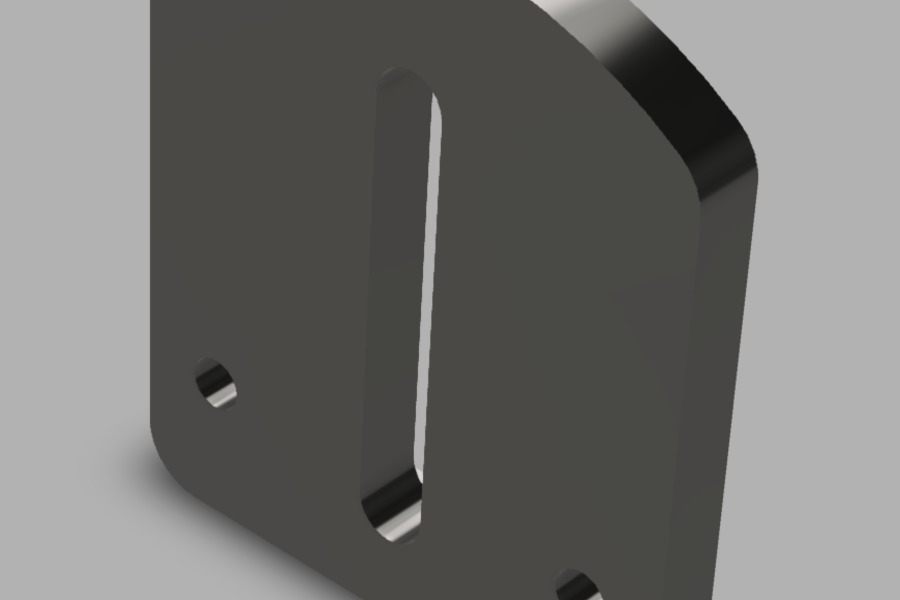

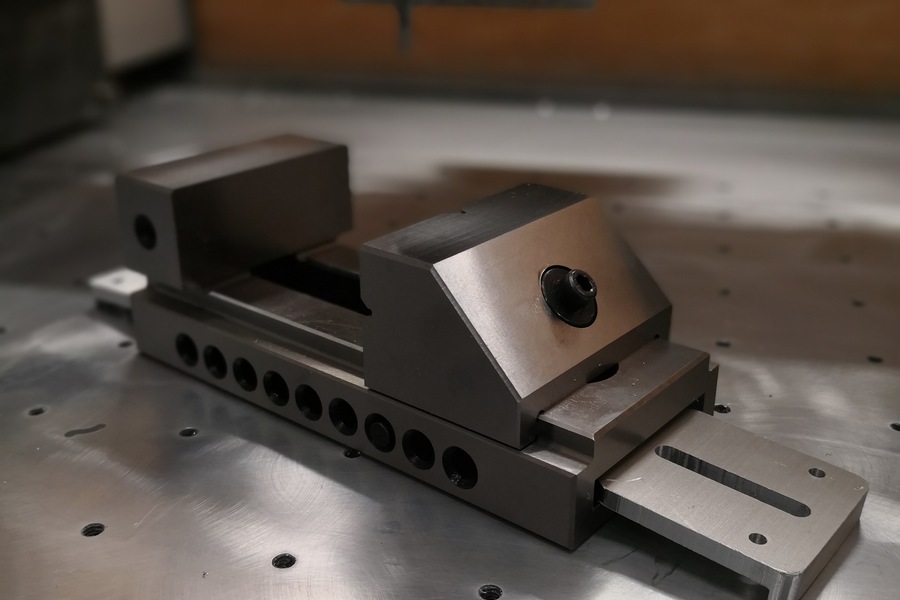

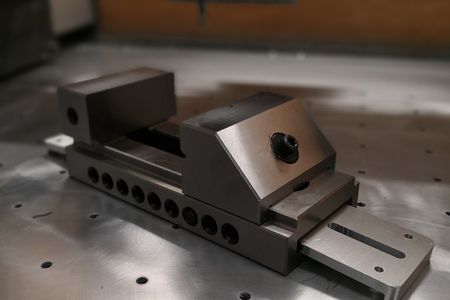

Ideal for holding the vice down firmly. Allows for optional dual M5 screws for height adjustment and slot style forwards/backwards.Suits 200mm spacing. Made from 10mm aluminium sheet can use 6mm if needed.
