Created by - CommonwealthCreations
Date Created - 2018-01-31
Last Update - 2019-05-02 17:35:40
Status - published

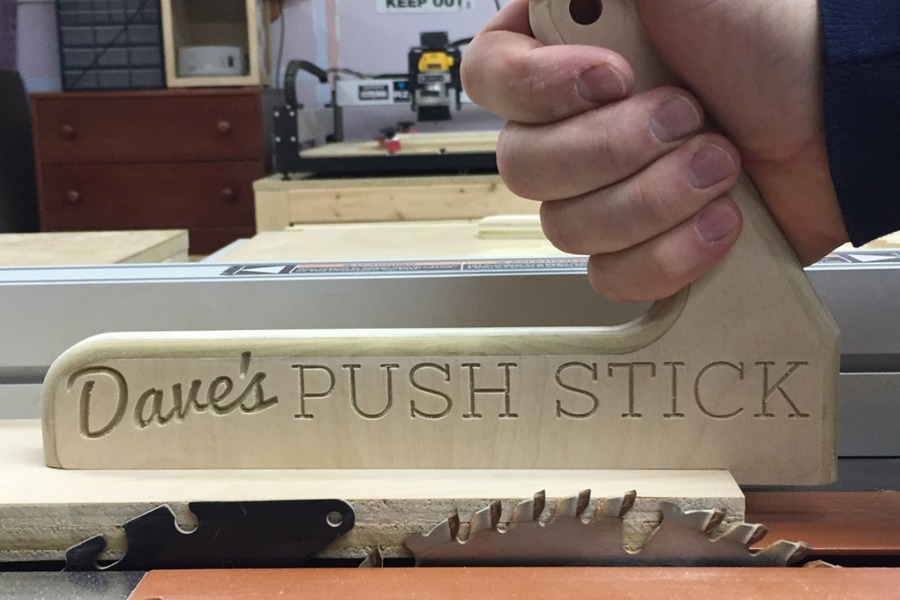

It's a push stick for a table saw. It's cut from 3/4" plywood. Measure 7 3/4" x 12". Cut using a 1/4" flat endmill bit.
Note: I had to use my bandsaw to cut a 90 degree where the push stick 'pushes' the material. Leaving that area rounded over is not a good idea.
The project file does not include personalization.
Type | Length | Width | Thickness | Job Zero |
---|---|---|---|---|
Soft | 254.00 | 355.60mm | 19.05mm | CENTER |
Name | Type | Tool | Feedrate | Plungerate | Cut Depth |
---|---|---|---|---|---|
Toolpath 2 | inside-profile | 201 | 1905mm | 635mm | -19.00mm |
Toolpath 3 | outside-profile | 201 | 1905mm | 635mm | -19.00mm |
Filename | File Type | File Size | |
---|---|---|---|
design_1 | c2d | 139.56kB |
Have you made this project?
If so, upload a photo to show the author some love and let everyone know what your finished version looks like!
You must be signed in to upload a photo.
made by {makerusername}
Comments
Ethorman posted 6 years ago
Thanks for the plans! Made one for my buddy and myself!Mike27520 posted 6 years ago
Any easy way to change the name from Dave's to Mike's? Im new to this also. Please help.M2Woodcrafts posted 6 years ago
There is no text in the file. If you want text you will need to go into the file and add it yourself. I just did this.CommonwealthCreations posted 6 years ago
Mike, did you ever figure it out? Send me a DM on IG if you need further assistance.You must be signed in to leave a comment.
